Brief introduction

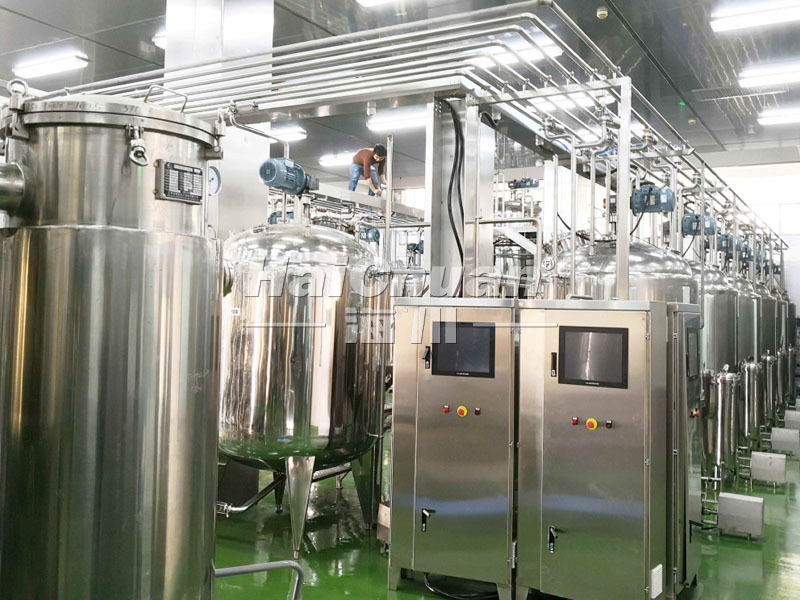

1. fermentor is a kind of equipment for mechanical stirring and fermentation of materials. The device adopts internal circulation mode dispersing and breaking bubbles with stirring paddles, which has high rate of dissolved oxygen and good mixing effect. the tank adopts SUS316L imported stainless steel, the tank is equipped with automatic spray cleaning head, to ensure that the production
2.process meets GMP requirements. the hygienic termentor is a totaly enclosed vertical three layer structure, which has the functions of heating, cooling, heat preservation ano mixing.The tank body is provided with a sandwich layer and an insulation layer (which can be heated, cooled, and kept warm).
4. The tank body and the upper and lower heads (or saucers) are processed by spinning R angle. The inner wall of the tank is polished by miror and the finishis Ra or
5. The completely closed design ensures that the material is always mixed and fermented without pollution. The equipment is equipped with ail respirator, CIP cleaning spray head, sanitary manhole, view mirror, liquid level meter, light lamp and so on.
6. The process of fermentation of pharmaceuticals, fine chemicals and biologics is a process of aseptic and non polluting,The fermentor adopt: the aseptic system to avoid and prevent the contamination of the microorganisms in the air, greatly prolonging the duration of the product and the purity ofthe product. Specially designed and installed sterile breathing stomata or aseptic positive pressure fermentation system, which can be heated or cooled by heating or cooling medium.
9. the material contact parts are all made of stainiess steel SUS316L, The insulation is made of polvamine foam, and the outer surface is matte and matte, which isin line with the GMP standard.
9.widely used in dairy, food,bioengineering,beverages, fruit wine, daily chemicalindustries such as mixing, fermentation, enzymatic hydrolysis Pharmaceuticals, fine chemicals, bioengineering and other industries.
