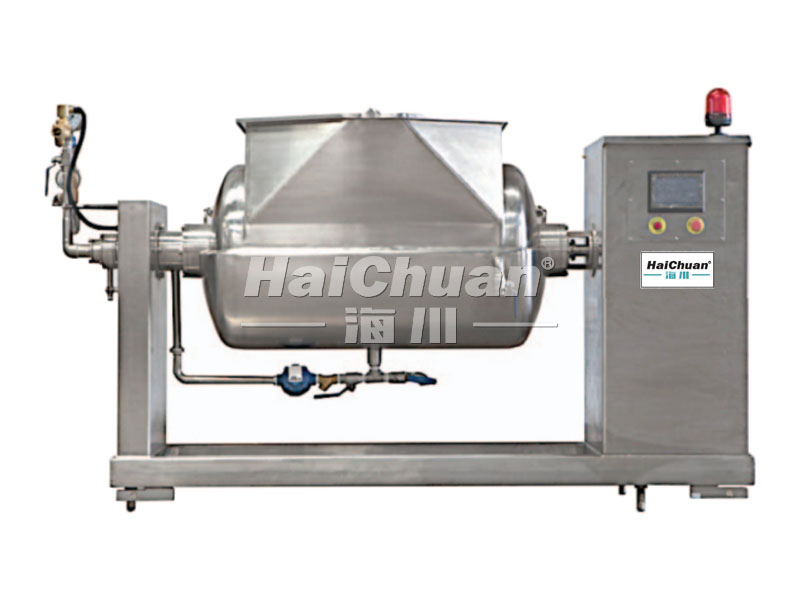

The horizontal steam mixers of WZ series which are produced by our company.are good in technology charicristics,easy and convinant for operating.it is widely used in mixing and cooking many ingredients such as seasoning food,meat foodseafood, vegetables, fruit, snack food.sweetened bean paste and so on.
1.By adopting steaming heating controllable system,it facilitates the control of heat sourseeasy maintenance and safty operation.And the maximum workable steam pressure is available up to 3.0ka/cm2G which offers high-tempreture cokking.
2.With the combination of our eclusive spiral blades and the scraping mechanism,thefoodstuffs are moved from side to side and mixed evenly.At the same timethe exclusive scraping and-folding motion promotes to mix particles and ingredients quickly and to insure homogenelty.(eligibility)
3.By using programable controller with swC,it is possible to automate the whole operation during the heating & strring piping system which is designed to save energy.
4.Fuel cost is reduced thanks to the returning piping system which is designed to save energy.
5.The jacket is designed to perform heat transfer effective and evenly during heating or cooling.
6Al parts including kettle are contructed of 304 or 316L stainless steel and other non-corrosivw material.The blades are readily removable for cleaning and replacement.
7.Appropriate mixing speed is selected easily by turning the speed change dial.
8Adopt PLC control(lncluding hour,weight,temperature,on line printing)(Optiona)
9Adopt weighing system,precision 1%.(Optional)
10.Temperature autocontrol.(Optional)
1 1 .After power off,the data of weight,temperature,hour automatic mem-ory.(Optional)
12.Deploy shaft head rinse.(Optional)
13.Adopt the heat preservation measure.(Optional)
